Sturmey-Archer Cone Lock Washer (right side)

Sturmey-Archer Cone Lock Washer (right side)
Please select options

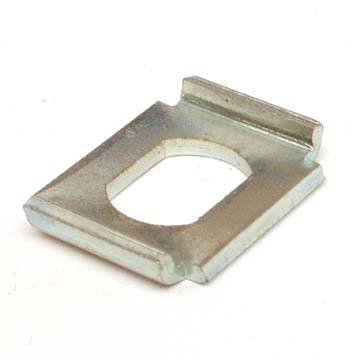

This essential washer incorporates two tabs that secure the wench flats of the right side cone, so that it will stay in adjustment.

The right cone adjustment is quite critical. With the left cone slack, the right one should be tightened finger tight, then backed off 1/2 turn, plus as much more as is needed to get the flats to line up with this washer's tabs.

Click here for a parts diagram of the Sturmey-Archer AW hub.

Part Numbers

HMW147 ZHMW147
